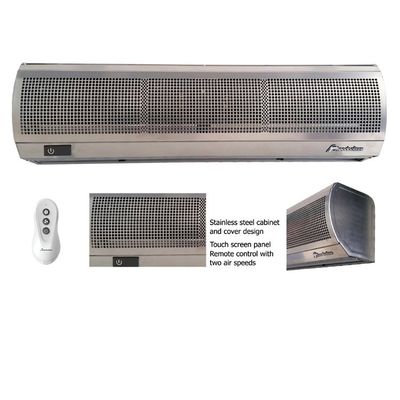

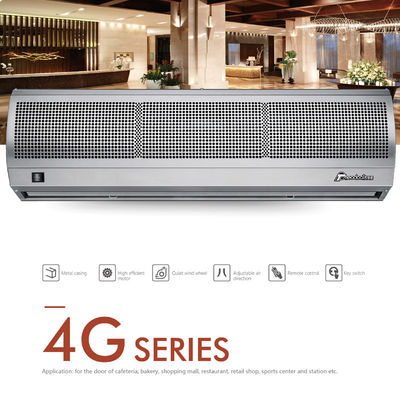

Designed for installation above entryways in cafeterias, bakeries, shopping malls, restaurants, and retail shops to maintain indoor climate conditions while preventing outdoor air infiltration.
| Model | Volt/Frequency (v/hz) | Size (mm) | Length (mm) | Air Velocity (m/s) | Air Volume (m3/h) | Noise (dB) | Power (w) | Net Weight |
|---|---|---|---|---|---|---|---|---|
| FM-1209S2 | 220v/50-60hz | 900x190x230 | 900 | 9-11 | 1400 | 55 | 160 | 10.5 |
| FM-1210S2 | 220v/50-60hz | 1000x190x230 | 1000 | 9-11 | 1600 | 56 | 180 | 11 |
| FM-1212S2 | 220v/50-60hz | 1200x190x230 | 1200 | 9-11 | 1900 | 56 | 190 | 13.5 |
| FM-1215S2 | 220v/50-60hz | 1500x190x230 | 1500 | 9-11 | 2500 | 57 | 230 | 16.5 |
| FM-1218S2 | 220v/50-60hz | 1800x190x230 | 1800 | 9-11 | 3200 | 58 | 300 | 19.5 |
| FM-1220S2 | 220v/50-60hz | 2000x190x230 | 2000 | 9-11 | 3600 | 59 | 350 | 22.5 |
| FM-1509S2 | 220v/50-60hz | 900x219x263 | 900 | 9-13 | 2000 | 67 | 230 | 15 |
| FM-1512S2 | 220v/50-60hz | 1200x219x263 | 1200 | 9-13 | 2800 | 69 | 350 | 19 |
| FM-1515S2 | 220v/50-60hz | 1500x219x263 | 1500 | 9-13 | 3600 | 71 | 430 | 23 |
| FM-1518S2 | 220v/50-60hz | 1800x219x263 | 1800 | 9-13 | 4400 | 73 | 450 | 27 |
An air curtain creates an invisible barrier above doorways to effectively isolate indoor and outdoor environments, maintaining temperature and humidity levels. Particularly effective when used with air conditioning systems, it helps conserve energy while preventing dust, pests, and harmful fumes from entering. This maintains a comfortable, clean indoor climate year-round.
National craftsman, Originality manufacturing
Theodoor Industrial Park covers 30,000 square meters with advanced equipment including automated assembly lines, CNC production, and ERP management systems. We implement strict 6S management and quality control systems.
Focusing on design aesthetics, performance testing, and material research, Theodoor selects environmentally friendly, fire-resistant materials and advanced manufacturing techniques to ensure product durability and safety.
From "MADE IN CHINA" to "CREATED IN CHINA", Theodoor holds over 80 national patents and has achieved ISO9001, ISO14001, CCC, CE, CB, ROHS, ERP, UL, SASO, INMETRO and SAA certifications through 18 years of innovation.
