Super thin and slim design
Super thin arc shaped body, metal outer cover, environmental-friendly and never get deformation.
High Performance

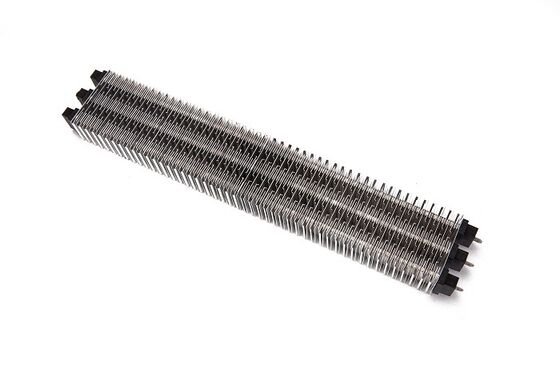

Uncharged PTC heater, High efficiency of heat output and conversion, Prompt-safely temperature rise, Non-oxidation, Low consumption and high output, low airflow resistance and long life operation.
Optimized air conditioner motor, running for 5000 hours continuously without failure.
Safe & Reliable
Security Protection: Thermal protector, varistor and fuse protection;
Automatic postpone safety protection when power heating off.
Smart Control

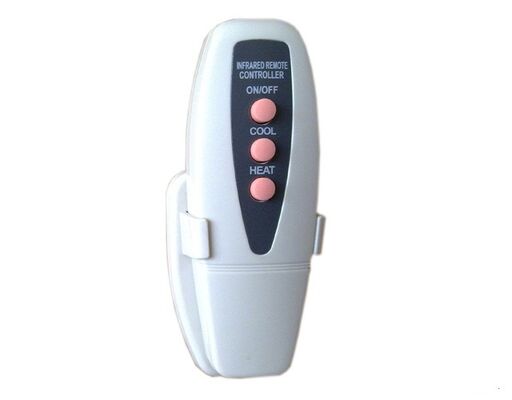

Remote control and button switch, Automatic shift of Hot/cool wind by remote control; Easy and safe operation.
|
MODEL |
Size (mm) |
Voltage (V ~ Hz) |
Motor input Power (W) |
Heater’s Power (KW) |
Temp. (K) |
Air Speed (M/S) |
Air Volume (m3/h) |
Net Weight (Kg) |
|
RM-1209S-D/Y |
900x180x215 |
220v ~~50Hz |
<160 |
3 |
25-35 |
6-7.5 |
1000 |
14.5 |
|
RM-1209S-D/Y |
900 x180x215 |
<160 |
6 |
35-45 |
6-7.5 |
1000 |
14.5 |
|
|
RM-1212S-D/Y |
1200 x180x215 |
<200 |
4 |
25-35 |
6-7.5 |
1400 |
17.5 |
|
|
RM-1212S-D/Y |
1200 x180x215 |
<200 |
8 |
35-45 |
6-7.5 |
1400 |
17.5 |
|
|
RM-1215S-D/Y |
1500 x180x215 |
<230 |
10 |
35-45 |
6-7.5 |
1900 |
21 |
|
|
RM-1209S-3D/Y |
900 x180x215 |
(3 phase) 380v ~~50Hz |
<160 |
6 |
35-45 |
6-7.5 |
1000 |
14.5 |
|
RM-1212S-3D/Y |
1200 x180x215 |
<200 |
8 |
35-45 |
6-7.5 |
1400 |
17.5 |
|
|
RM-1215S-3D/Y |
1500 x180x215 |
<230 |
10 |
35-45 |
6-7.5 |
1900 |
21 |
|
|
RM-1218S-3D/Y |
1800 x180x215 |
<330 |
12 |
35-45 |
6-7.5 |
2100 |
23 |
|
|
RM-1220S-3D/Y |
2000 x180x215 |
<350 |
14 |
35-45 |
6-7.5 |
2600 |
25 |
How does Air Curtain work?
Air curtain is an air fresher equipment, to form an “invisible air door” by running of high speed motor with cross flow or centrifugal blower. It has been widely used in electronic, medicine making, food processing, precision processing, chemical, business areas and other industry. It can effectively isolate convection indoor and outdoor and keep temperature and humidity. Air curtain is also called air door, air barrier etc.
National craftsman, Originality manufacturing
Theodoor industrial park covers the area of 30,000 square meters. We had applied the most advanced industrial equipments and detecting instruments. There are automatic operation assembly lines, CNC production and executed implementationof ERP management, 6S management and strict quality system management.
Theodoor strives for design aesthetics, power performance, material testing, research and development, technology and performance. Select new security, environmental protection, wear-resistant materials, use advanced manufacturing technique to extend product lifetime, to ensure that products can be operated more secure, environmentally friendly (non-toxic, odorless, fire-resistant) in a variety of conditions.
From “MADE IN CHINA” to “CREATED IN CHINA”
Theodoor has acquired National Invention Patents, Utility Model Patents and Design Patents for more than 80 items, leading the quality and performance of product upgrading in the industry. The company and products had passed ISO9001, ISO14001, CCC, CE, CB, ROHS, ERP, UL, SASO, INMETRO and SAA certifications. Over 15 year’s originality manufacturing, Theodoor has created worldwide quality products.
